Two-Axis Cnc Cold Coil Spring Machine
The two-axis CNC cold coil spring machine is mainly used for rolling small batches and large diameter springs. The equipment adopts a CNC control system and two sets of servo motors to control the number of coiling turns and spring pitch respectively.
Key words:
Classification:
Email:sxjkzdh@163.com
Detailed introduction
Graphic Details
Equipment Introduction

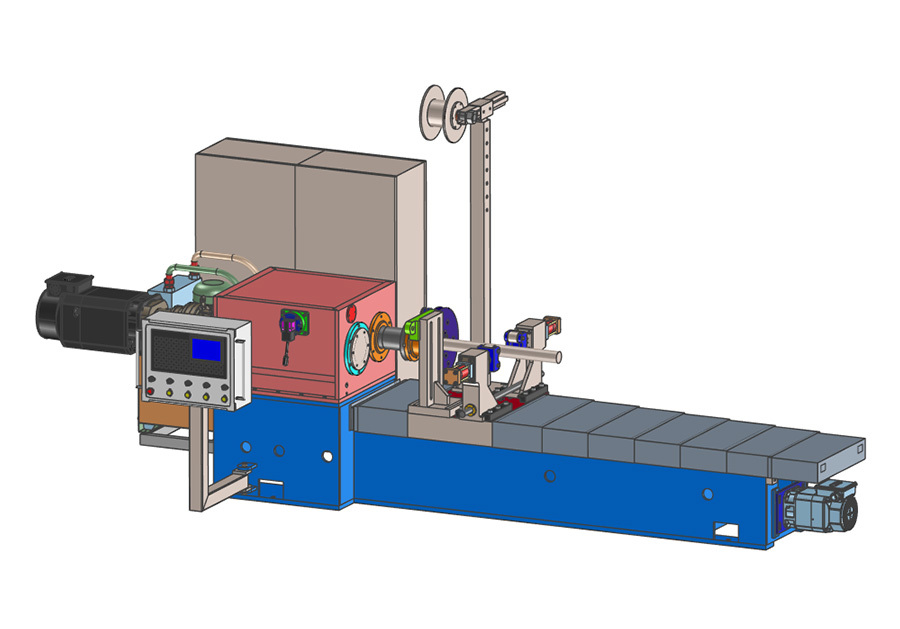

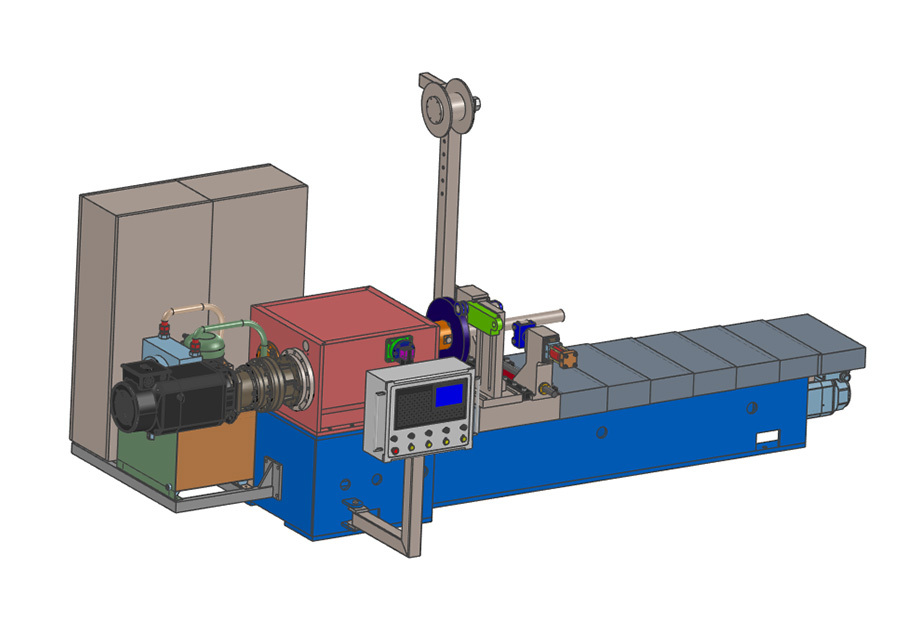

The two-axis CNC cold coil spring machine is mainly used for rolling small batches and large diameter springs. The equipment adopts a CNC control system and two sets of servo motors to control the number of coiling turns and spring pitch respectively. lt can roll left-hand and right-hand springs. lt is simple to operate, flexible in use, and it requires a short time to change specifications. lt has a wide range of applications, both straight and wire rods can be used, the maximum wire diameter can be rolled to 32mm. lt has low purchase and usage cost. lt is suitable for small factories with small batches, many varieties and special-shaped spring production.
Functional Advantages
Simple operation
G code programming, flexible control form, program can be stored, the production process can be controlled by programming, adjustable rolling speed.
Low material requirements
Both straight materials and coiled materials can be produced. Straight materials can be directly rolled into multiple springs without cutting. The equipment is specially equipped with a wire hanger to facilitate the rolling of coiled materials.
Wide range of use
The gearbox is equipped with two gears, high and low, which facilitates the speed and torque requirements for rolling different products. lt can produce both large and small wire diameters.
Low cost of use
Low equipment purchasecost, low running cost for small batch production, multiple springs can be rolled continuously, reasonable equipment structure, and low failurerate.
Specification Parameters
| Equipment Model | SL-25 | SL-32 | |
| Rolling material diameterrange | 10-25mm | 10-32mm | |
| Spring outer diameter range | 50-250mm | 60-300mm | |
| Spring height range | 100-1500mm | 100-1500mm | |
| Spindle servo motor power | 18.5kw | 22kw | |
| Total power | 26kw | 30kw | |
| Spindle speed | Fast gear | 59r/min | 59r/min |
| Slow gear | 24r/min | 24r/min | |
| Equipment weight | 3.8t | 4.2t | |
